STRUCTURAL STEEL DETAILING
We are structural steel detailers, we provide accurate and high quality of drawings for Structural Steel Fabricators with the use of 3Dmodeling Software such as BIM software. Also we provide other data formats which are helpful for the fabrication process,
We have experienced modelling and checking team and we able to provide commercial, residential structural steel as well as miscellaneous steel drawings. Our team executes effective systems and procedures to deliver on-time accurate drawings.
WE PROVIDE FOLLOWING DRAWINGS AND REPORTS
ERECTION DRAWINGS
- ANCHOR BOLT PLAN

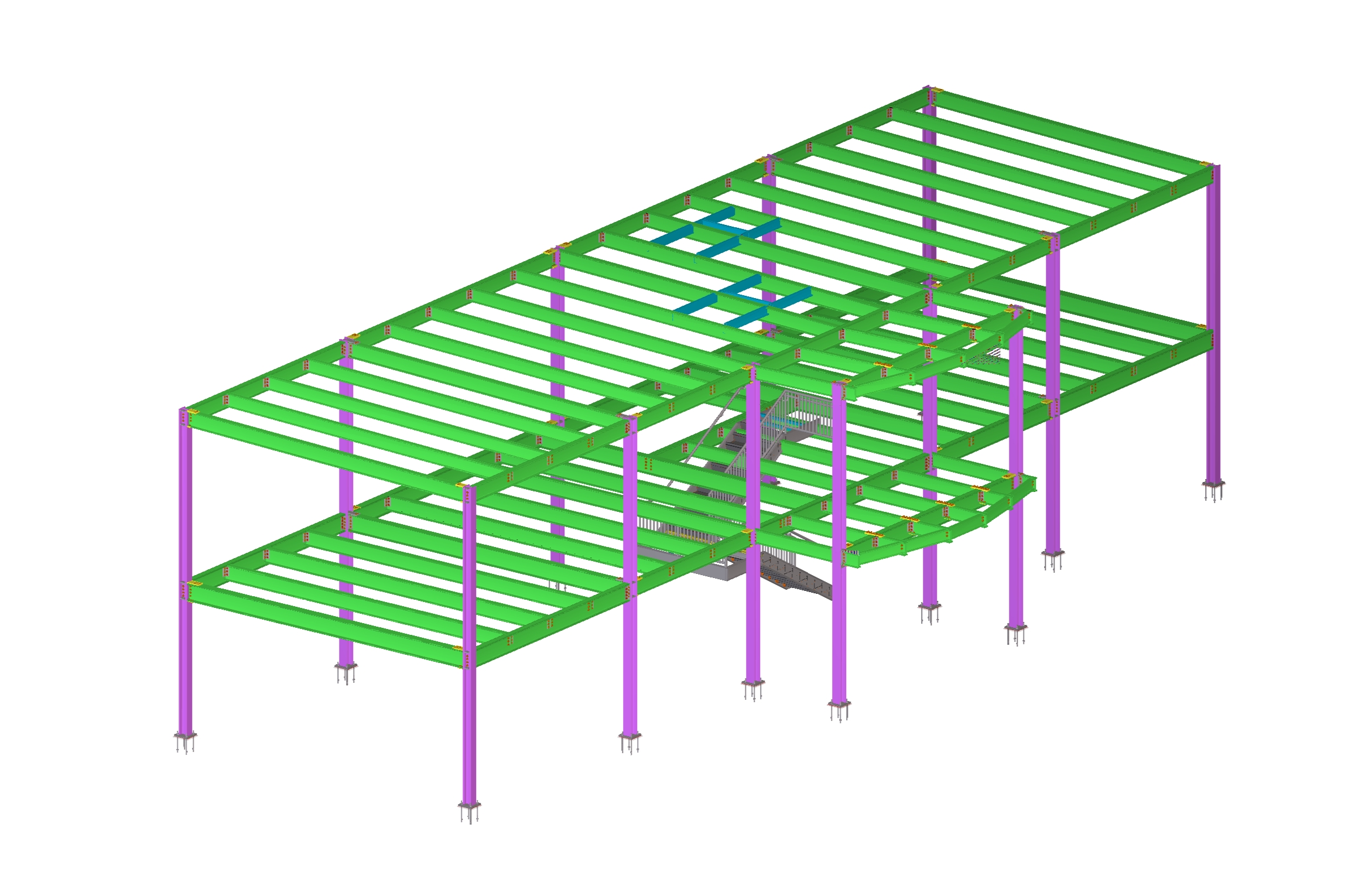

- MAIN FRAMING PLAN
- CONNECTION DETAILS
- SECTION AND DETAIL VIEWS
- ELEVATION VIEWS
SHOP DRAWINGS
- BEAM AND COLUMN DRAWINGS
- RTU FRAME DRAWINGS

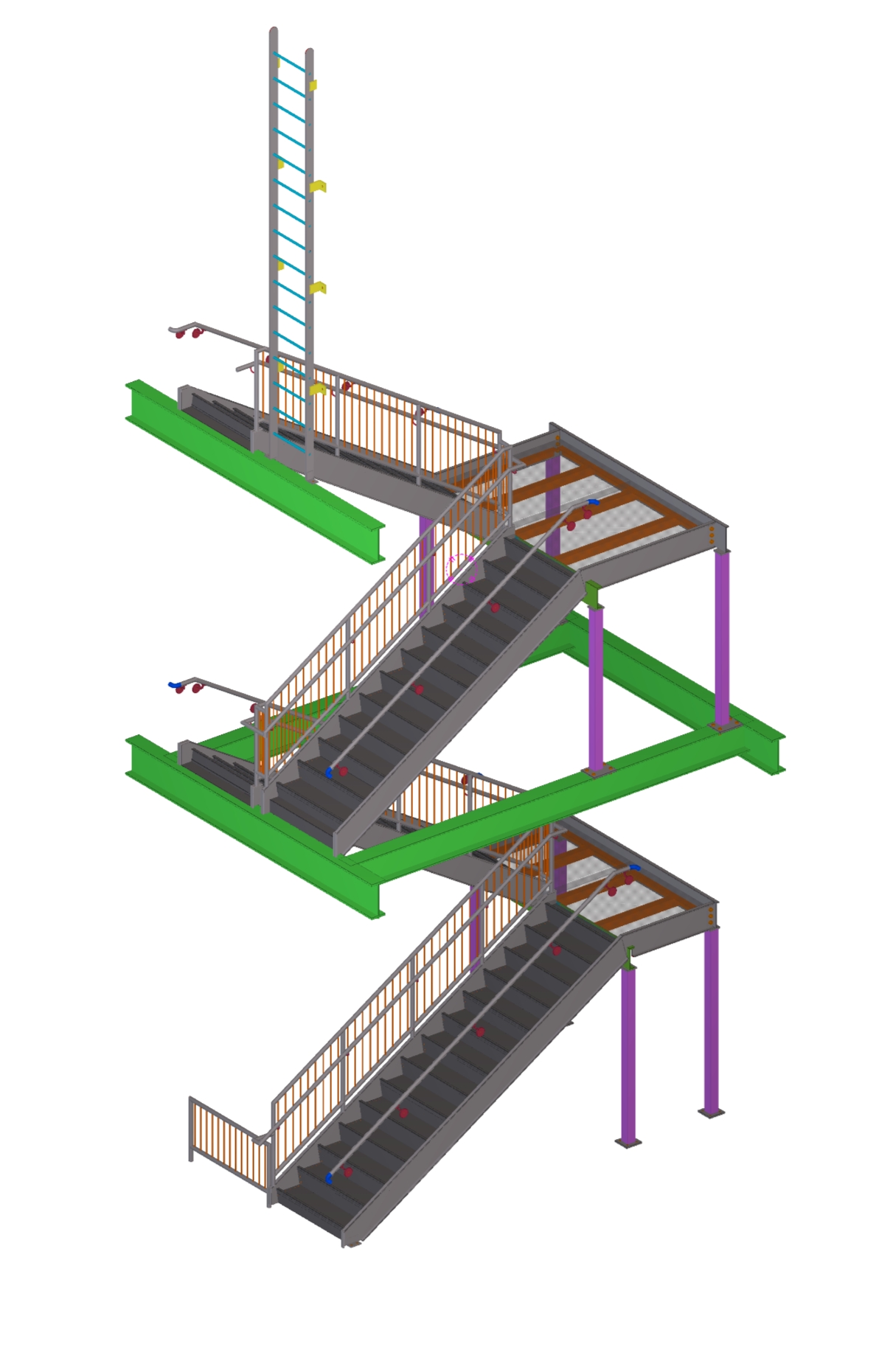

- STAIR AND LADDER DRAWINGS
- OTHER STRUCTURAL STEEL MEMBERS
REPORTS
- CNC FILES
- PLATE DXF FILES
- KSS FILES
- FIELD BOLT LIST
- ABM LIST
